After more than two decades of research and development, and a few false starts, the carbon capture and storage (CCS) market is set to blossom. Sustained government support and the foresight of the research community and key industry actors have put Norway at the forefront of this development.

Since the introduction of the CO₂ tax in 1991, Norway has been a pioneer in the field of CCS. It has more than 20 years of experience in CO₂ storage in the Sleipner and Snøhvit enhanced oil recovery projects on the Norwegian Continental Shelf, in addition to an extensive public funding programme, CLIMIT, managed by the Research Council of Norway and Gassnova on pilot projects.

The most evident result of the effort to implement CCS is the development of the world’s first open-source CO₂ transport and storage infrastructure, Northern Lights, as a step toward deploying CCS at a commercial scale. Phase one of Northern Lights is due to be completed in mid-2024, with a storage capacity of about 1.5mn t/y of CO₂. However, this is a drop in the ocean compared to the International Energy Agency’s (IEA) Sustainable Development Scenario, which requires almost 1bn t/y of CO₂ to be stored underground by 2030.

Fortunately, the winds of change for CCS aren’t just blowing in the far north. In the US, at least three major industrial hubs located next to the Gulf of Mexico are developing CO₂ storage hubs. The Central Louisiana Regional Carbon Storage Hub is the largest, with a total storage capacity of 1bn tonnes of CO₂.

The UK is also focused on CCS, having started the race to carbon neutrality in 2019, when the government set an ambitious emissions reduction target. Concrete examples of this commitment can be found in the HyNet North West cluster, which plans to be active by the middle of the decade. The project aims to capture up to 30% of the CO₂ emitted from hard-to-abate sectors (such as the cement, fertiliser and petrochemical industries) around Liverpool, and sequestrate it in an offshore reservoir managed by Eni, 30 km from Liverpool Bay. Repurposing existing assets is an essential component of this undertaking.

In addition, the Zero Carbon Humber cluster aims to build the world’s first net zero industrial region, and store 12–17mn t/y of CO₂ from heavy emitters such as British Steel.

These developments come from the understanding that CCS will play a significant role in hard-to-abate industry sectors. An especially promising application is in industries such as cement or aluminium. According to the IEA, CCS has the potential to be retrofitted to existing power plants that could otherwise emit 600bn tonnes of CO₂, thereby storing almost two decades of emissions.

The CCS chain
To enable CCS at scale, however, will require considerable effort. The CCS chain can be divided into capture, transport, and storage. Prosaically, it means that the CO₂ must first be captured and transported before being injected into a deep underground formation. The whole process cost estimates range between $80–150/t of sequestered CO₂.

New technologies
Capture technology, although widely considered commercially available due to innovative companies such as Aker Carbon Capture and Saipem, is the most expensive part of the chain. New and more cost-effective second-generation capture technologies, such as innovative membranes, are on the way.

In this respect, Hydrogen Mem-Tech has recently received an investment of NKr170mn (€16.2mn) for the commercialisation of high-temperature membrane technology for hydrogen production with integrated CO₂ capture.

Another example is CO₂ liquefaction, utilising a process designed by SINTEF that uses low-temperature liquefaction and phase separation for the purification and transport conditioning of CO₂, making it more cost-effective to purify and ship.

Carbon capture on vessels is also being developed, with an initiative led by Wärtsilä. There is a suggestion that large ships equipped with CO₂ capture units are unlikely to deviate from their routes to CO₂ collection hubs. Instead, a fleet of smaller vessels may provide this service while the ships are anchored, loading or offloading payload.

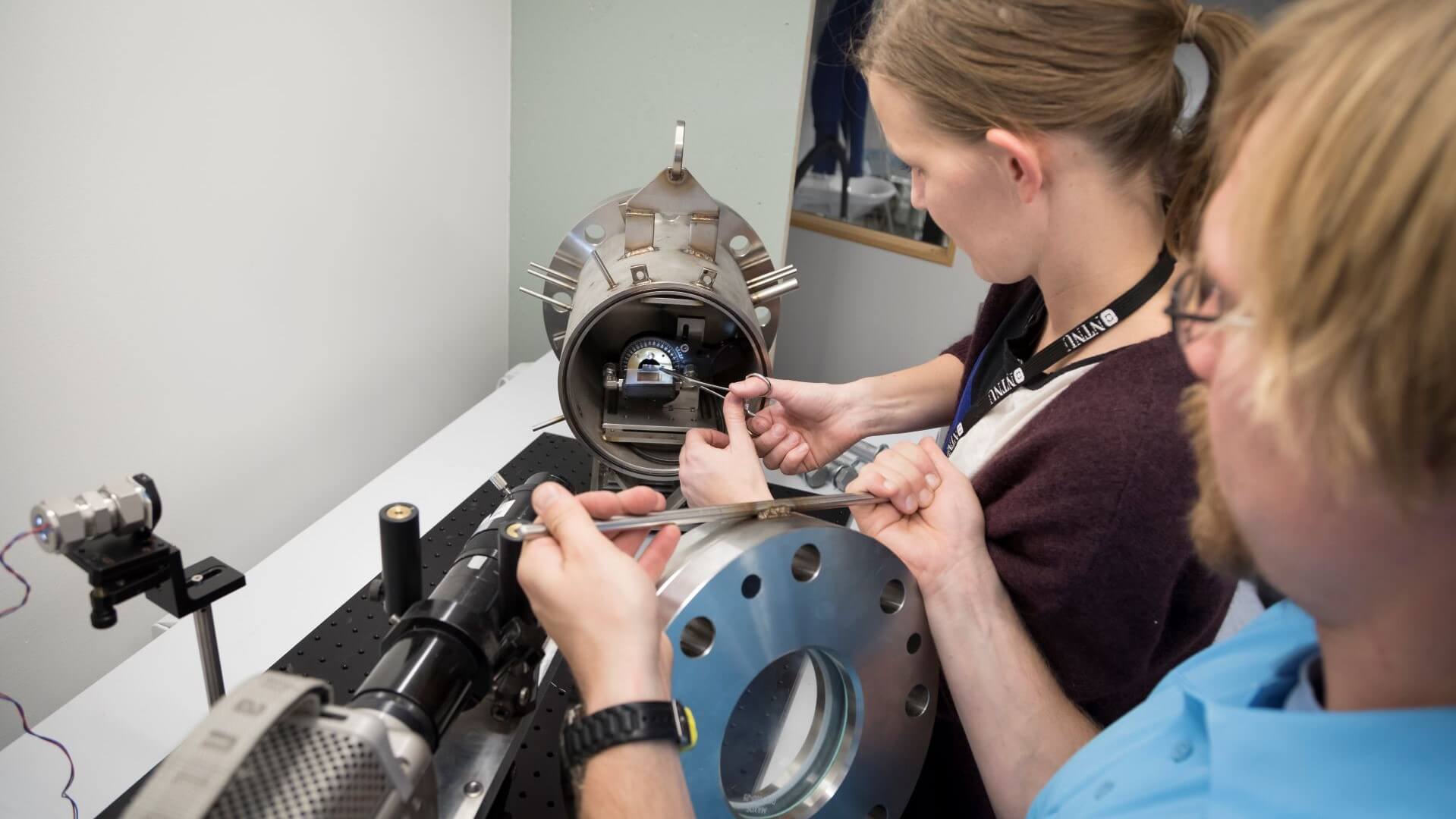

CO₂ capture testing at the Tiller laboratory in Trondheim, Norway
Photo: SINTEF

New transport chains
Large transport chains need to be developed to ensure a sustained flow of CO₂ to the storage sites. The CO₂ will travel from smaller point sources to collection hubs. Small emitters will be able to transport CO₂ via trains and trucks, whilst larger ones may do so via barges or ships (if in the proximity of waterways). The hubs can be connected to the injection facilities via pipelines or large-capacity ships.

Transportation of CO₂ via pipelines is not a new application. However, there are still technological areas that users and developers are focusing on. For example, Saipem is building a set of tools to predict and assess thermodynamics, system integrity and related safety aspects.

.

Transport of liquefied CO₂ by ship started over 30 years ago, with the first CO₂ tanker starting operation in 1988 in Norway. Today, the largest CO₂ transport vessels can only transport up to 4,000 m³ of CO₂, enough to meet the small needs of the existing CO₂ market but not enough for future CCS projects. This is being addressed through innovative, large-scale ship designs from companies such as Moss Maritime, Wärtsilä and Larvik Shipping.

In addition, work is underway to develop optimised logistic tools, which will help shipping companies optimise their routes and help storage companies understand where to strategically position the hubs in order to best serve the CCS value chain.

Cross-border agreement
The world’s first ground-breaking agreement on cross-border CO₂ transport and storage, signed in September 2022 between Yara and the Northern Lights, did not come easily. In addition to an extensive industrial effort, large research centres supported by visionary partners and the government have helped mature the capacity and competencies needed to realise such an endeavour.

The Norwegian CCS research centre (NCCS), with a budget of over €50mn over eight years and more than 20 industrial partners, is the world’s largest CCS research centre. It focuses on technologies and processes to ensure the safe and cost-effective implementation of CCS in Norway and Europe, and around the world.

Thanks to these cooperative centres, even more ambitious CCS implementation plans are underway. The NCCS spin-off project LINCCS, aims to enable more than 100mn t/y of CO₂ to be stored on the Norwegian Continental Shelf by 2030, twice the current Norwegian CO₂ emissions. Partners include Aker Solutions, Equinor, Wärtsilä, Lundin, TotalEnergies, Wintershall DEA, Vår Energi and SINTEF.

ACCSESS is another NCCS spin-off project, with the goal of making large-scale CCS implementation more accessible as a tool for decarbonising European industry and cities (with 20–30% cost cuts proposed). The ACCSESS consortium consists of 18 partners from eight countries, which together represent four industrial sectors with the potential to drastically reduce their CO₂ emissions. Its first project for CO₂ capture using Saipem’s CO₂ Solutions technology on Hafslund Oslo Celsio’s mobile CO₂ capture plant, has already started. At the end of the year, this technology will be moved to Technology Centre Mongstad for another test campaign, with the addition of a rotating packed bed absorber from PROSPIN.

Knowledge gaps regarding the polymer materials that can be safely and effectively used in CO₂ transport infrastructure (eg elastomeric seals, gaskets, pipe liners etc as leakage seals and protective barriers) are being addressed in the CO₂-EPOC project, financed by Equinor, TotalEnergies, Gassco and Saipem.

Finally… a big challenge
A key challenge for the future of CCS is to connect risk capital to innovators and opportunities to businesses in a timely manner. Decades of research with CCS have advanced promising technologies to the demonstration stage. Now that CCS is becoming an industrial reality, there is a strong need to bridge the technological ‘valley of death’ that characterises innovation – in other words, the gap between pilot testing and commercial deployment.

The process is not risk-free – a large amount of capital is required to propel these technologies to the commercial stage. The complex situation we live in calls for extraordinary cooperative efforts by a constellation of small- to large-scale actors.

Nevertheless, it will be highly remunerative to the ones brave enough to take the risk. In Virgilio’s famous words: ‘Fortune favours the bold.’
